| उत्पत्ति के प्लेस: | जर्मनी |
| ब्रांड नाम: | PILZ |
| मॉडल संख्या: | 773812 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | USD 586 |

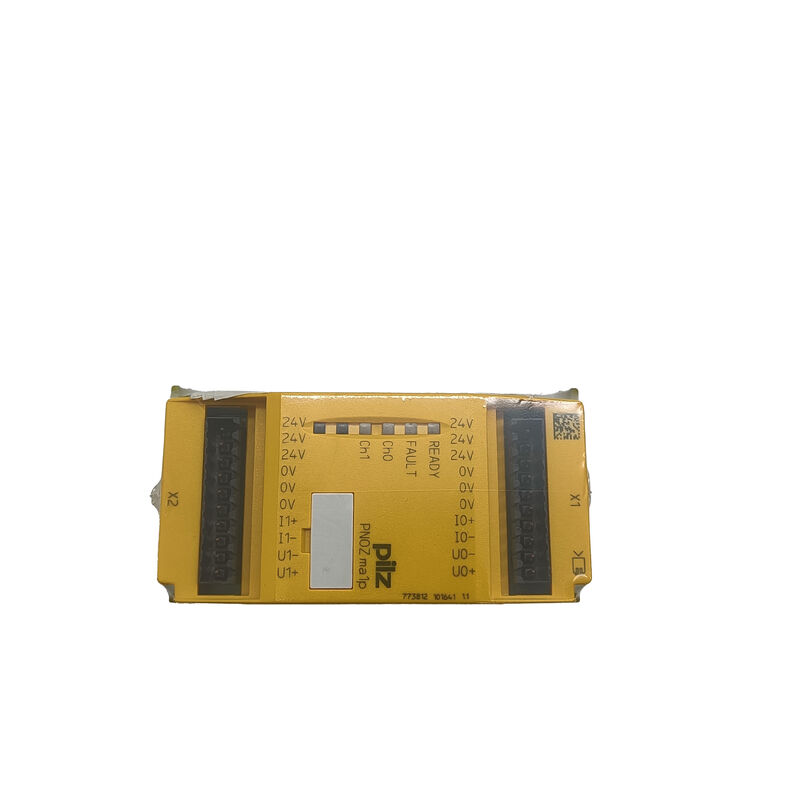

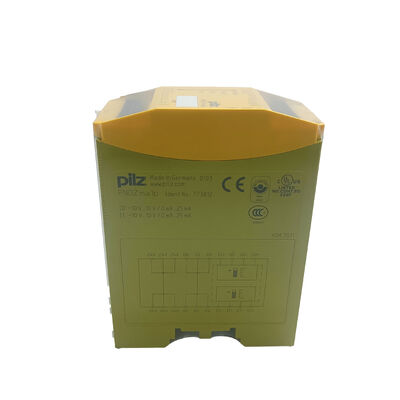

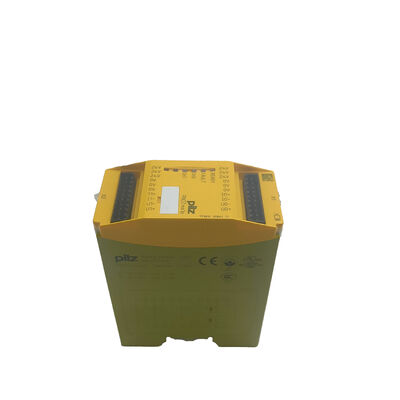

New Original 773812 PNOZ ma1p Analog Input Module is a high-reliability safety expansion module designed for precise analog signal acquisition in industrial automation and safety control systems. Engineered for seamless integration with Pilz PNOZmulti safety controllers, this module ensures stable, accurate monitoring of analog signals in safety-critical applications.
With 2 analog input channels and 24V DC operating voltage, the PNOZ ma1p module enables real-time evaluation of process values such as position, pressure, speed, and temperature. Its robust industrial design guarantees dependable performance in harsh environments, making it an ideal choice for machine safety, factory automation, and process control systems.
This new original module is factory sealed and fully compliant with international safety standards, providing long-term operational stability and simplified system expansion.
Product Attribute |
Attribute Value |
|---|---|
| Alternate Mfr Part Number | |
| Brand | |
| For Use With | |
| Input | |
| Manufacturer Part Number | |
| Material | |
| Series | |
| Supply Voltage | |
| Type |
PNOZ ma1p vs Siemens vs Allen-Bradley vs Omron Analog Input Modules
| Parameter | Pilz PNOZ ma1p (773812) | Siemens Analog Input Module | Allen-Bradley Analog Input Module | Omron Analog Input Module |
|---|---|---|---|---|
| Manufacturer | Pilz | Siemens | Allen-Bradley (Rockwell Automation) | Omron |
| Product Type | Safety Analog Input Module | PLC Analog Input Module | PLC Analog Input Module | PLC Analog Input Module |
| Typical Series | PNOZmulti | S7-1200 / S7-1500 | POINT I/O / Compact I/O | NX / CJ Series |
| Number of Inputs | 2 Analog Inputs | 4–8 Analog Inputs (model dependent) | 4–8 Analog Inputs (model dependent) | 4–8 Analog Inputs (model dependent) |
| Supported Signal Types | Voltage / Current | Voltage / Current | Voltage / Current | Voltage / Current |
| Input Voltage Range | ±10 V (typical) | ±10 V | ±10 V | ±10 V |
| Input Current Range | 0–20 mA / 4–20 mA | 0–20 mA / 4–20 mA | 0–20 mA / 4–20 mA | 0–20 mA / 4–20 mA |
| Resolution | 12–13 bit | 15–16 bit | 16 bit | 16 bit (model dependent) |
| Operating Voltage | 24 V DC | Supplied via PLC backplane | 24 V DC | Supplied via system bus |
| Integration System | PNOZmulti Safety Controller | Siemens PLC System | Rockwell PLC System | Omron PLC System |
| Safety Application Design | Yes – Safety-oriented design | Standard PLC I/O | Standard PLC I/O | Standard PLC I/O |
| Mounting Method | DIN Rail | Rack / Backplane | Base Unit / DIN Rail | System Bus / DIN Rail |
| Typical Application | Safety signal monitoring | Process automation | Process automation | Process automation |
| Target User | Safety systems / OEM | PLC automation engineers | PLC automation engineers | PLC automation engineers |
Product Applications
The 773812 PNOZ ma1P is a Pilz fault-safe analog input module with 2 differential inputs, supporting voltage/current signals. It features high resolution and complies with safety standards. Its core purpose is to monitor analog quantities such as speed, pressure, temperature, and position in industrial scenarios. It triggers safety protection when thresholds are exceeded. It is compatible with automated production lines, lifting and hoisting equipment, chemical process units, machine tools, robots, etc., to ensure equipment and personal safety.
