Product Overview:

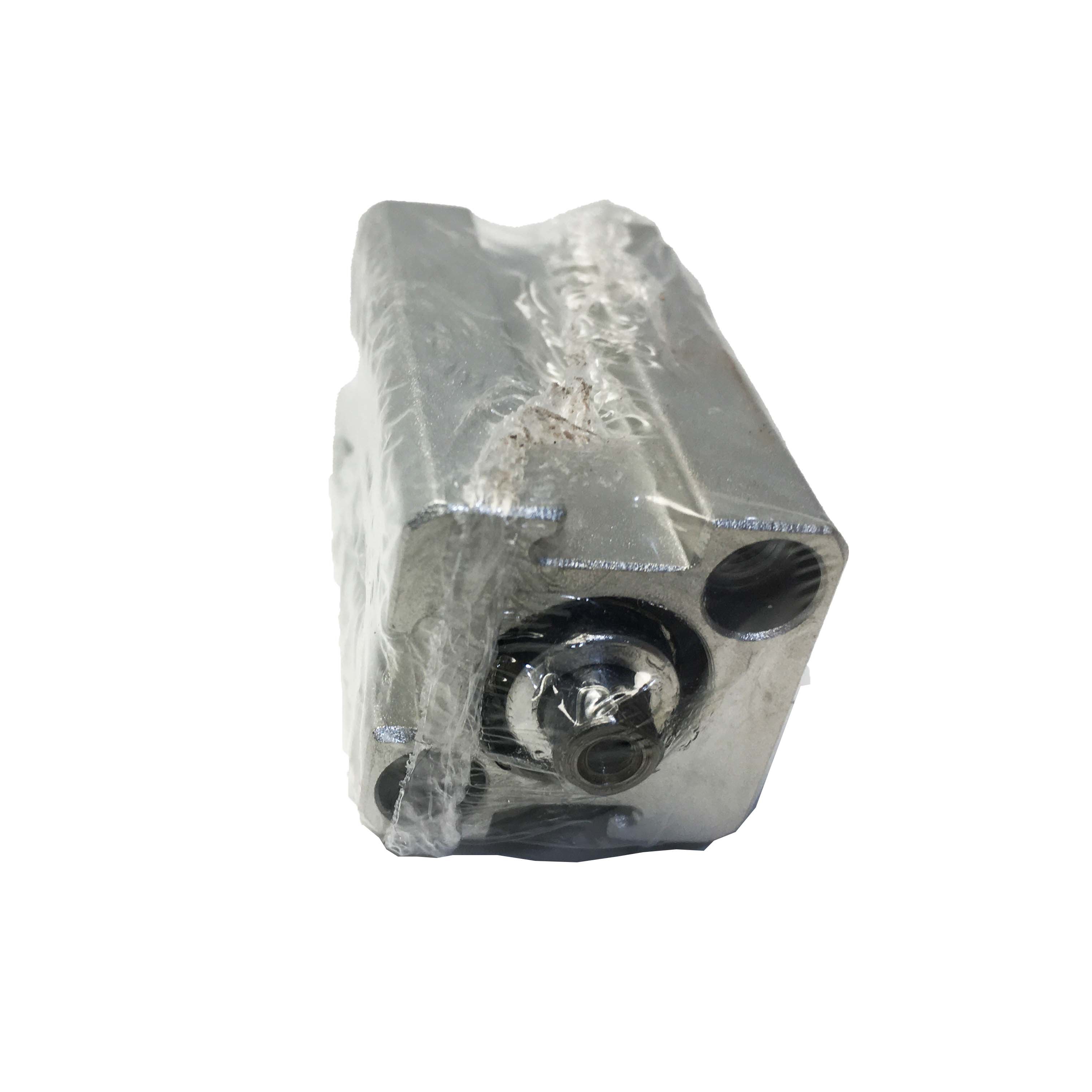

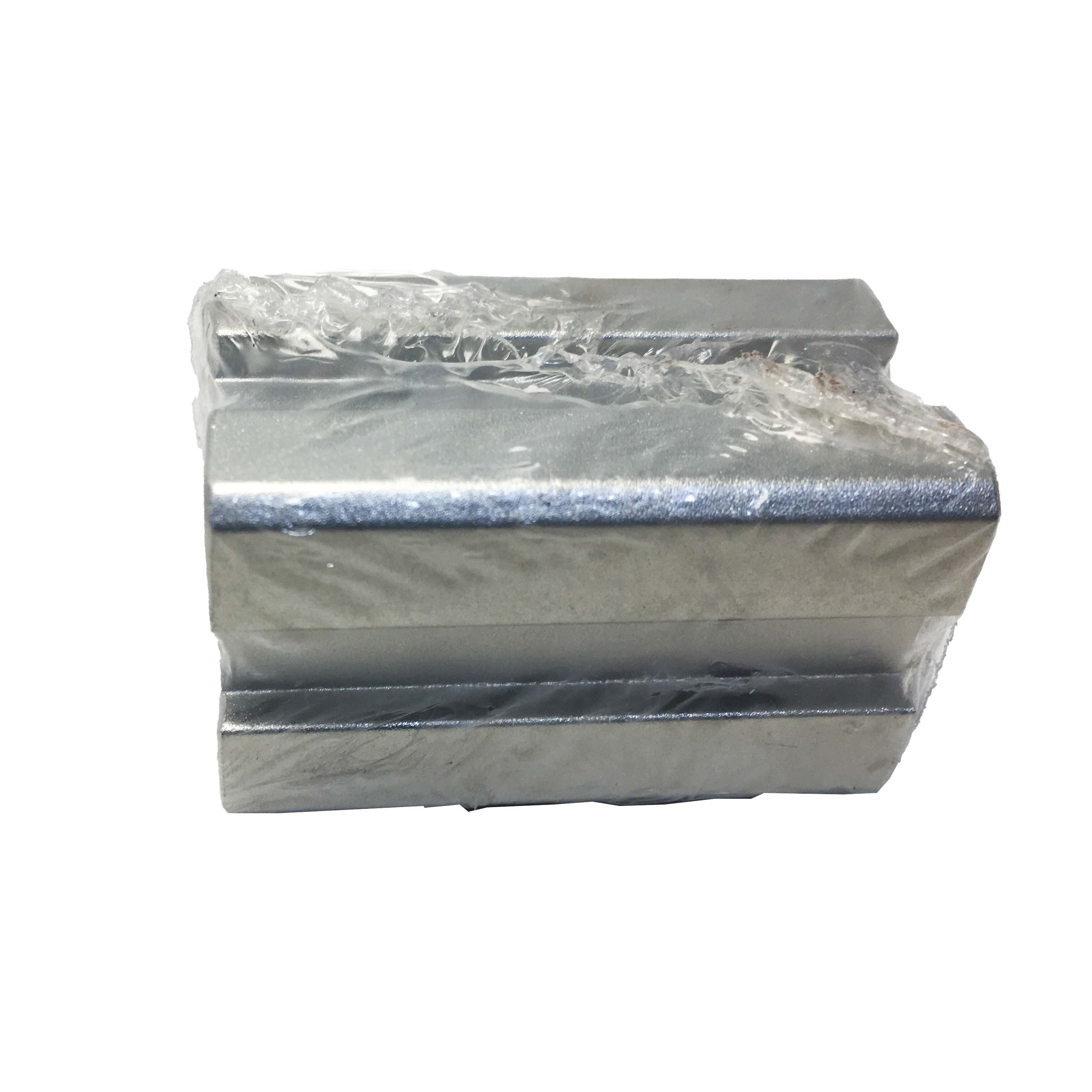

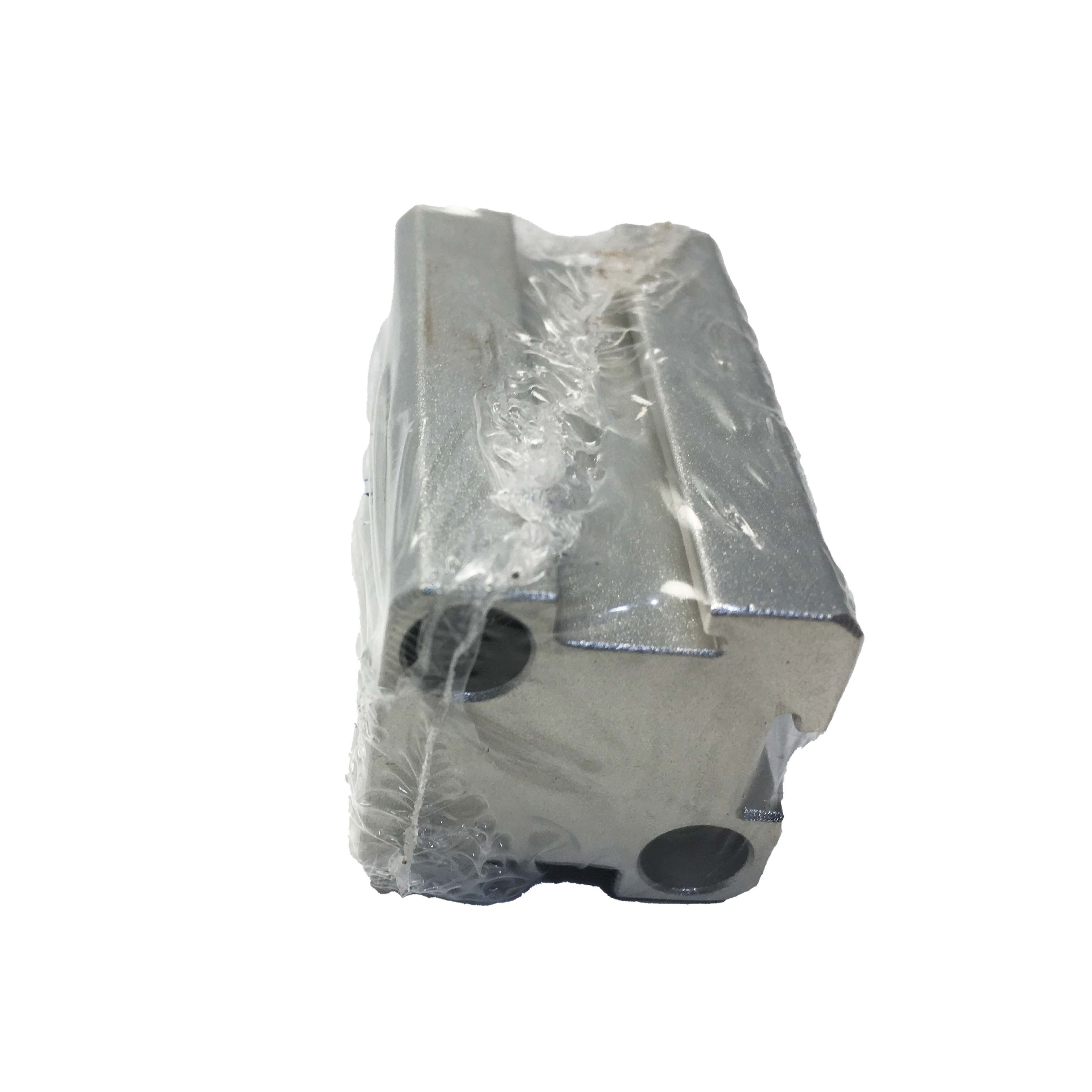

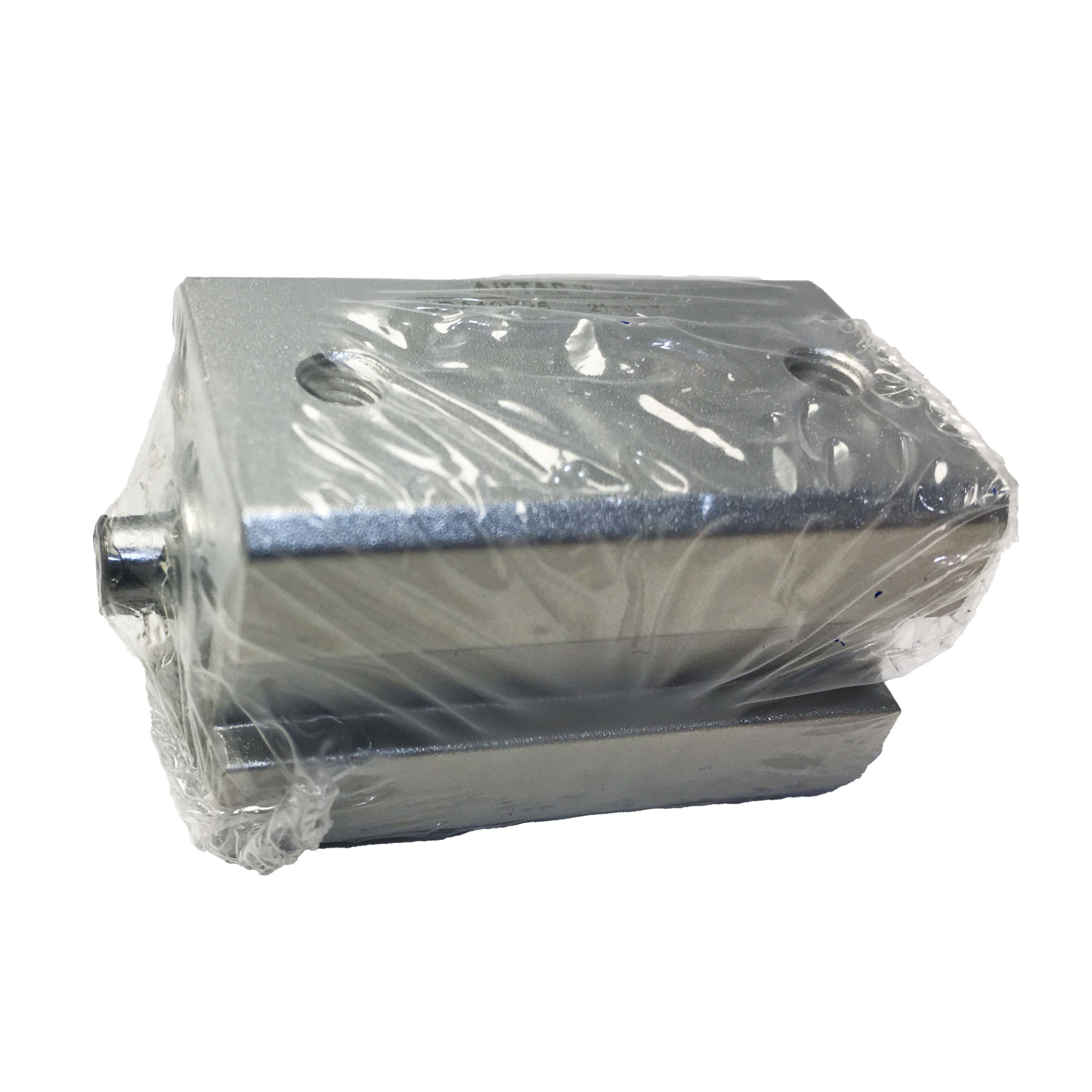

The Airtac SDA12X25 Ultra-thin Air Cylinder is a brand-new, factory-sealed pneumatic actuator designed for industrial automation applications where space is limited but performance cannot be compromised. With its slim profile and robust aluminum construction, it delivers accurate, fast, and reliable linear motion, making it ideal for packaging lines, assembly machinery, and robotic systems.
Technical Data:
| Parameter | Specification |
|---|---|
| Cylinder Type | Ultra-thin / Compact pneumatic cylinder |
| Bore Size | 12 mm |
| Stroke Length | 25 mm |
| Operating Pressure | 0.1–0.9 MPa (14.5–130 PSI) |
| Maximum Speed | Up to 1.5 m/s (adjustable depending on load) |
| Working Temperature | -20°C to 70°C (-4°F to 158°F) |
| Material | Aluminum alloy body with anti-corrosion coating |
| Mounting | Standard M5 threaded holes for versatile installation |
| End Cushioning | Optional pneumatic cushioning for smooth stop |
1. Adopt Airtac brand manufacturing.
2. Cylinder body and back cover, piston and piston rod with riveted structure, compact and reliable.
3. The inner diameter of the cylinder body is subjected to hard oxidation treatment after rolling treatment, which is wear-resistant and durable.
4. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
5. Compact structure, can effectively save installation space.
6. There is a sensor groove around the cylinder body, which is convenient to install the sensor.
7. Various specifications of the cylinder type for choice.
Installation & Usage:
1.When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
Applications:
Compact automation machinery and robotics
Conveyor system actuation and packaging lines
Pick-and-place devices in electronics and assembly
Light-duty mechanical motion in industrial processes
Any scenario requiring high-performance linear motion in limited space
